Product Specifications

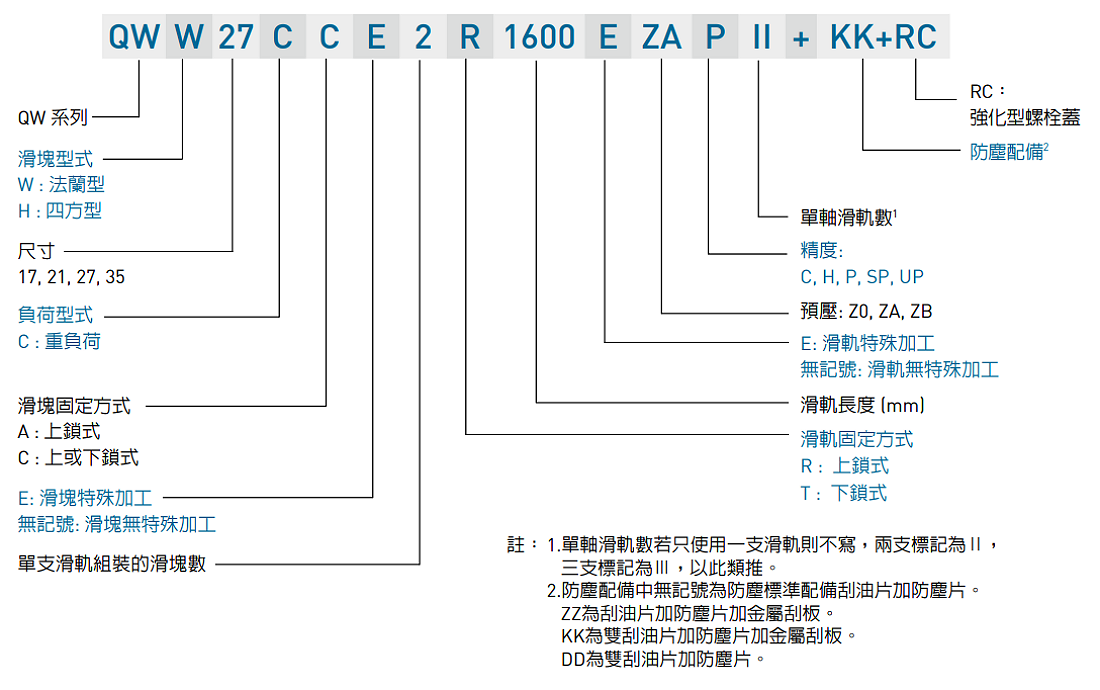

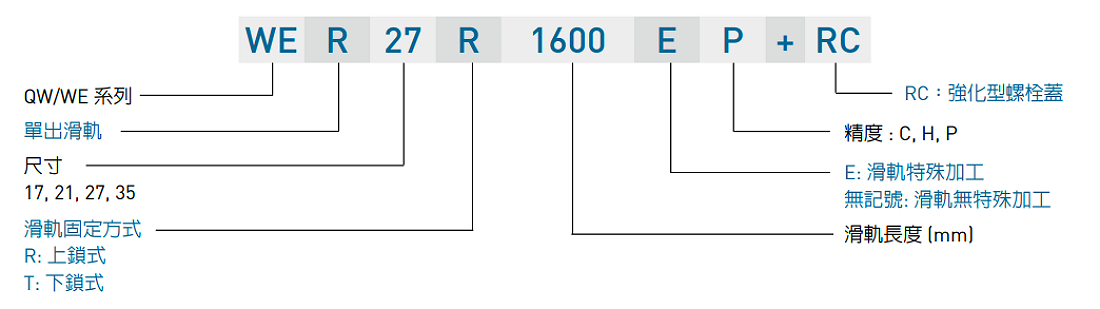

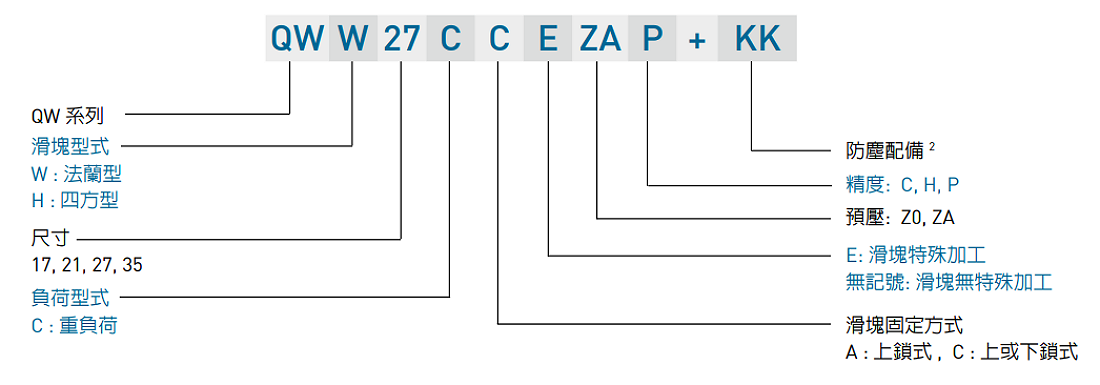

The QW series is divided into two types: non-interchangeable and interchangeable linear guides. Both have the same dimensions; the main difference is that the slider and rail of the interchangeable type can be replaced individually, making them more convenient. However, the combined accuracy cannot reach the ultra-precision level of the non-interchangeable type. However, since the combined accuracy of HIWIN's interchangeable type has reached a certain level, it is a convenient choice for customers who do not need to pair and install linear guides. The product specifications of the linear guide mainly indicate the size, type, accuracy level, and preload of the linear guide to facilitate confirmation of the product by both parties when ordering. The QW series and WE series rails are shared, so customers do not need to redesign the installation dimensions for quiet products, further enhancing the applicability and interchangeability of the QW series.
