What should be paid attention to when maintaining guide rail slides?

Publish Time：

2025-01-02

When maintaining linear guide slides, the following points should be noted:

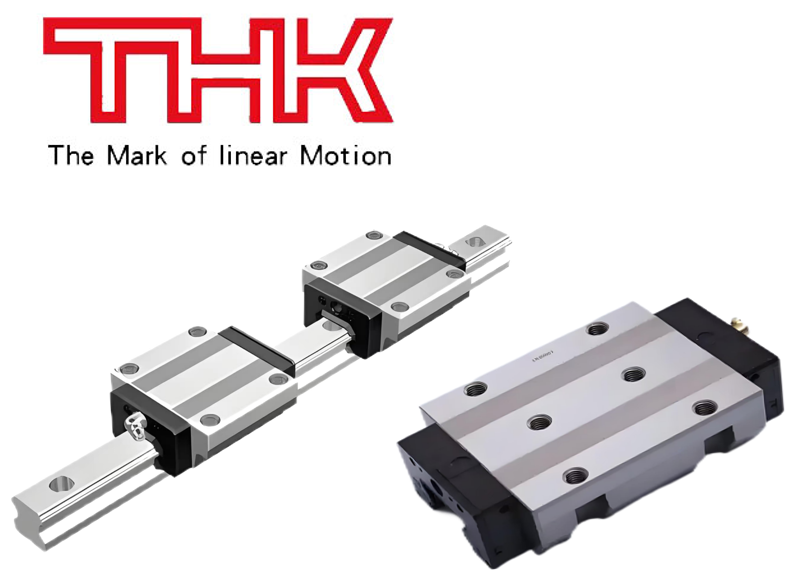

1. Cleaning and Maintenance: Regularly remove dirt, dust, and grease from the surface of the (THK) linear guide rail and slide block to keep the transmission components clean and dry. A clean cloth or specialized cleaning agent can be used to wipe, preventing fine dust from entering the slide block and increasing wear.

2. Lubrication: Select the appropriate lubricating oil or grease according to the usage conditions and requirements of the (HTPM) linear guide slide. Regularly check the quantity and quality of the lubricating oil, and add or replace it according to the manufacturer's recommended specifications. When using grease lubrication, it is recommended to wipe off the rust-preventing oil from the surface of the linear guide rail and slide block before filling the entire internal space of the slide block with lubricating grease; when using oil lubrication, initially fill the internal space of the slide block with oil, and subsequently supplement the oil according to factors such as the nominal width of the HIWIN linear guide rail.

3. Avoid Overload: Avoid operating the HIWIN linear guide slide under overload conditions to prevent damage caused by overload. The specifications and parameters of the transmission components should be reasonably matched during design and use to ensure that their load-bearing capacity meets the actual work requirements.

4. Regular Inspection: Regularly check the wear and tear and operating status of the HIWIN linear guide rail and slide block, observing whether the movement accuracy of the slide block has decreased and whether there is wear, scratches, or other damage on the guide rail surface. If serious wear or abnormal phenomena are found, they should be replaced or repaired promptly to ensure the normal operation of the equipment.

5. Protective Measures: Adopt appropriate protective measures according to the different usage environments. For example, in environments with a lot of dust, dustproof devices can be installed; in environments with high oil content and humidity, it is best to use foldable protective covers; when there is a lot of water and debris, telescopic plate protective covers can be used to prevent the linear guide slide from being contaminated and damaged.

In summary, when maintaining linear guide slides, attention should be paid to cleaning, lubrication, load, inspection, and protection to ensure their normal operation and extend their service life.
